Model:

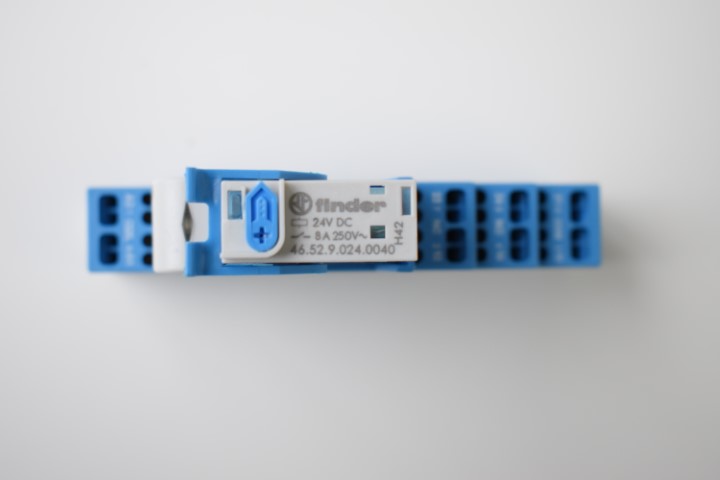

Finder 4C.52.9.024.0050 Koppelrelais 24V/DC Schaltstrom, Zugfederklemmen

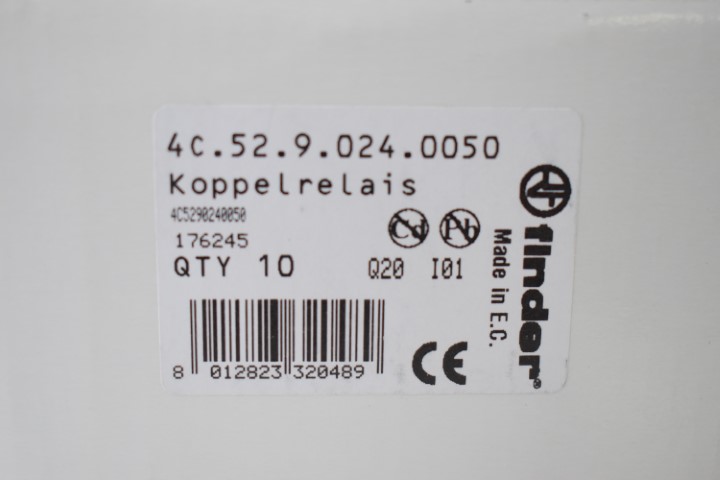

Art.Nr. 4C.52.9.024.0050

EAN: 8012823320489

Beschreibung:

Koppelrelais für DIN-Schiene inkl. Zugfederklemmen

2-polige Relais-Schnittstellenmodule, schraubenloser Klemmensockel, 15,8 mm breit. Ideale Schnittstelle für SPS und elektronische Systeme 4C.52 - 2-polig 8 A

Technische Daten:

Contact configuration: 2 CO (DPDT)

Rated current/Maximum peak current A: 8/15

Rated voltage/Maximum switching voltage V AC: 250/440

Rated load AC1 VA: 2000

Rated load AC15 (230 V AC) VA: 350

Single phase motor rating (230 V AC) kW: 0.37

Breaking capacity DC1: 30/110/220V A: 6/0.5/0.15

Minimum switching load mW (V/mA): 300 (5/5)

Standard contact material: AgNi

Nominal voltage (UN) V AC (50/60 Hz) / V DC: 12 - 24 - 110 - 120 - 230 / 12 - 24 - 125

Rated power AC/DC VA (50 Hz)/W: 1.2/0.5

Operating range AC / DC: (0.8…1.1)UN / (0.73…1.1)UN

Holding voltage AC/DC: 0.8 UN /0.4 UN

Must drop-out voltage AC/DC: 0.2 UN /0.1 UN

Mechanical life AC/DC cycles: 10 · 10 hoch 6

Electrical life at rated load AC1 cycles: 100 · 10 hoch 3

Operate/release time ms: 10/3 (AC) - 10/10 (DC)

Insulation between coil and contacts (1.2/50 µs) kV: 6 (8 mm)

Dielectric strength between open contacts V AC: 1000

Ambient temperature range °C: –25…+70

Protection category: IP 20

Lieferumfang:

1x Stück Finder 4C.52.9.024.0050 Koppelrelais

Rechnung mit ausgewiesener MwSt.
